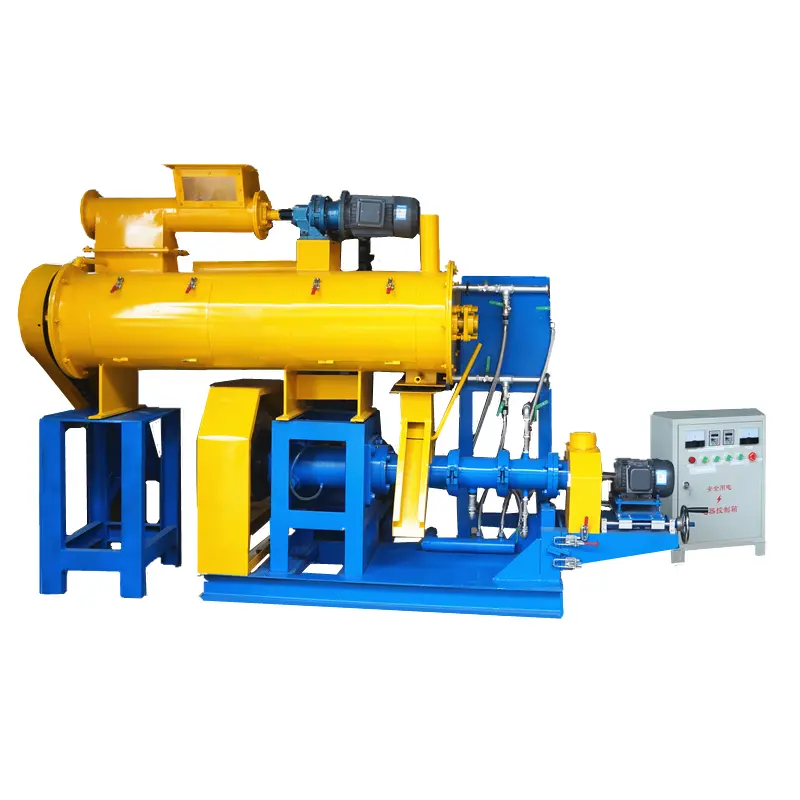

fish feed extrusion machine for kinds of aqua feed with high quality

    1 Star2 Stars3 Stars4 Stars5 Stars (6 votes, average: 4.83 out of 5)
    Loading...
  • Model:DSP70
    Power:18.5KW+0.75KW+0.4KW three phases
    Power type:electricity,diesel engine or petrol engine
    Capacity:300-400kg/h
    Final pellets size:0.9-15mm
    Used for:making fish feed,cat food,dog food,pet food
    Final pellets shape:ball shape,bone shape,heart shape,footprint shape
    Raw materials:grains,manure,straw meal,alfalfa,rice husk,grass meal,sunflower,etc
    Raw materials moisture required:15-25%

this type of floating fish feed extrusion machine belongs to wet method type feed extruding machine for kinds of fish, which is specialized for big production capacity and big feed production factory,this type fish feed extrusion machine can produce floating fish feed pellets with diameter from 0.9-15mm, applicable to produce pet food, fish feed pellets, shrimp feed and other animal feed pellets.besides,except floating type fish feed extruder machine, we have sinking type feed pellet mill for making sinking pellets.

As the major part of fish feed production plant, wet type fish feed extruder making is equipped with a boiler which can continuously providing hot steam. It can produce all kinds of floating or sinking aqua feed for fish, eel, shrimp, crab, loach, bullfrog, etc, and can produce many kinds of pet feeds for cat, dog, and etc. The pellet size can be from 0.9-15mm to feed different size fishes. High capacity and top quality products, Wet type Sinking and Floating Fish Feed Extruder is a preferred choice for medium or large size feed processing factory and aquaculture farm.

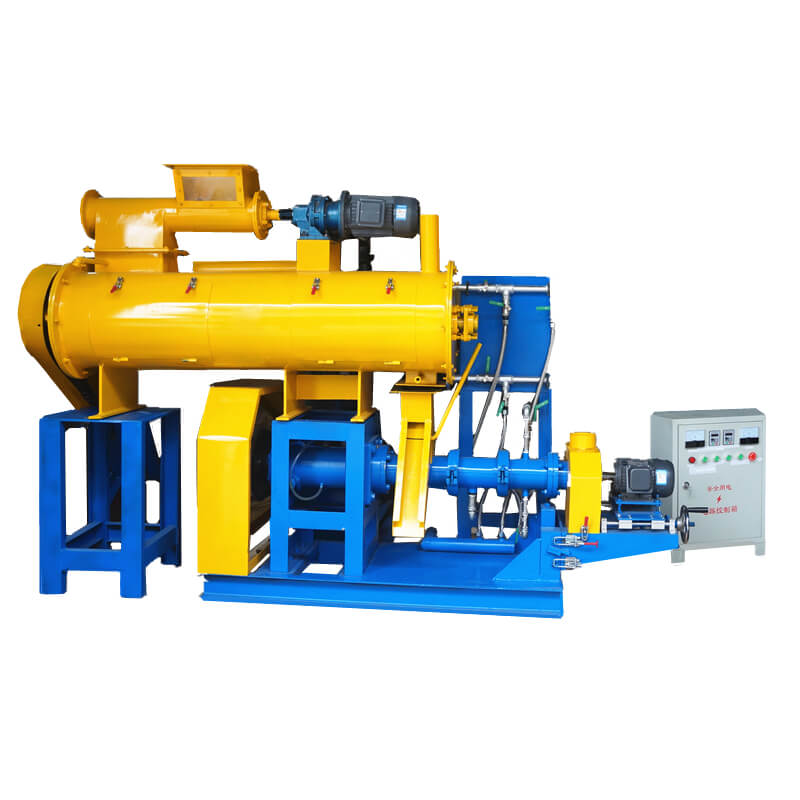

300-400KG/H feed extrusion machine

Advantages of Floating Fish Feed Extrusion Machine

◆ Feeding evenly and constantly: Flat-bottomed scraper mechanism and feeder controlled by transducer make sure that the materials can be fed evenly and constantly.
◆ High efficiency and low power consumption: With conditioner, the steam and water can be directly injected into the extruding chamber through special mechanism, thus the quality and quantity of products can be improved greatly with lower power consumption.
◆ Cutting quickly and accurately: Removable cutting mechanism use knives with good elasticity, which attach to the die plate tenderly and can be regulated in six directions, can be operated quickly and accurately.
◆ Wide application: Variably configurations of screw bolts can match the producing demands for different formulas and raw materials.
◆ Longer service life: Screw bolts and dies are processed through vacuum quench treatment, also be processed with high processing precision and have a long using longevity.
◆ Easy operation: All the operating parts like steam valves, etc, adopt the humanization design, in order to facilitate actual operations.

300-400KG/H feed extrusion machine

Wide Application of Wet Type Fish Feed Extrusion Machine

● high production capacities, this fish feed extrusion machine is suitable for large and medium fish feed plant and aquaculture farm.
● Suitable for making aquatic feed pellets for fish, shrimp, crab,etc.
● The wet type fish feed extrusion machine can also make pet food for cats, dogs, etc.
● Both floating fish feed and sinking fish feed can be produced by this fish feed making machine, and this fish feed pellet mill is mostly used as floating fish feed making machine.
● The raw materials of the fish feed extrusion machine can be corn, soybean, soybean meal, wheat bran, rice bran, fish meal, etc.

300-400KG/H feed extrusion machine

Specification of fish feed extrusion machine

Model
Capacity
Main
power
Feeding
 power
Screw
diameter
Cutting
 power
Conditioning
power
DSP60
0.15-0.20t/h
15kw
0.4kw
60mm
0.4kw
0.37kw
DSP70
0.30-0.4t/h
18.5kw
0.75kw
70mm
0.4kw
1.1-1.5kw
DSP80
0.40-0.5t/h
22kw
0.75kw
80mm
1.5kw
1.5-2.2kw
DSP90
0.50-0.6t/h
37kw
1.1kw
90mm
2.2kw
2.2-3.0kw
DSP120
0.7-0.8t/h
55kw
1.1kw
120mm
2.2kw
2.2-3.0kw
DSP135
1.0-1.2t/h
75kw
1.5kw
135mm
3.0kw
3.0-4.0kw
DSP160
1.8-2.0t/h
90kw
2.2kw
155mm
3.0kw
4.0kw
DSP200
3.0-5.0t/h
132kw
2.2kw
195mm
4.0kw
5.5kw

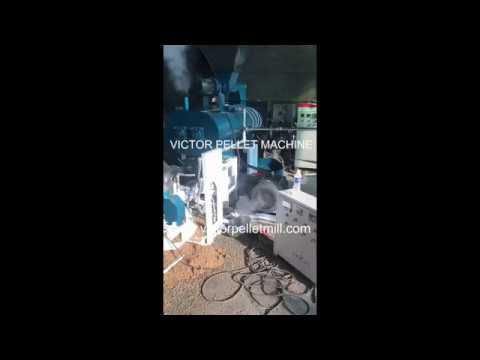

Video of fish feed extrusion machine
