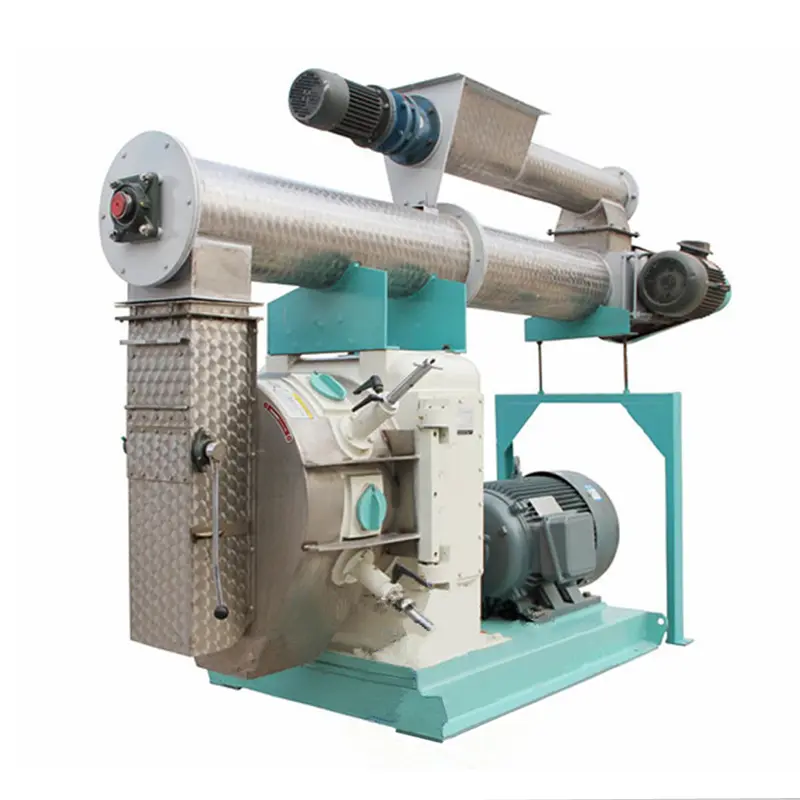

  • Model:HMK350
    Power:55KW three phases
    Power type:electricity

    Capacity:3000-4000kg/h
    Final pellets size:1.5-15mm
    Used for:making chicken feed,cattle feed,livestock feed,fish feed
    Raw materials:grains,manure,straw meal,alfalfa,rice husk,etc

Ring die pellet mill is widely used in pellets making industry and large pellets production line. The rind die pellet mill machine has a wide cylindrical shape and the die is vertical. Due to its high cost and big size, it is not as common as the flat die pellet mill. small ring die pellet mill is usually for making pellets business and other commercial purposes.As a professional Chinese manufacturer and supplier of small ring die pellet mills, apart from the high-quality ring die pellet mills, we also provide ring dies and rollers manufactured by us and specially match our ring die pellet mills. Therefore, you don’t need to worry how to find the suitable dies, rollers and other wearing parts.

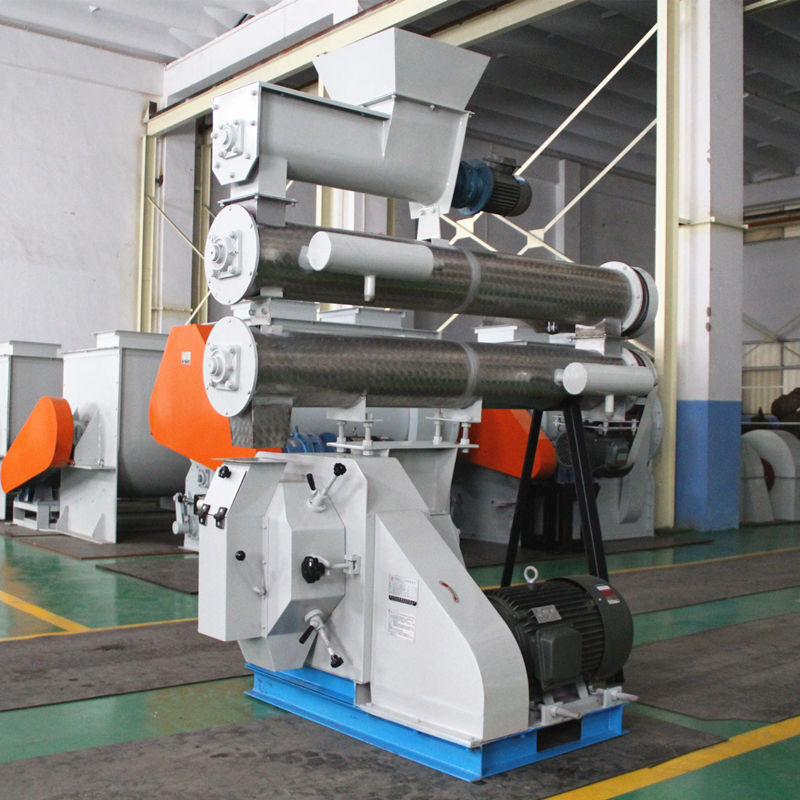

1-10T/H ring die pellet mill

Why it is called Ring Die pellet mill?

The reason is that the main part of this small ring die pellet mill machine is a circular ring, which is called a “die”. and there are 2 rollers inside the ring to rotate and extrude the biomass in the middle to go through the die holes and cylindrical pellets are made.

Wood Ring Die Pellet Mill Features
1. Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive, and the die adopts the quick removing clamps.
2. The drive part of the machine including motor optimize the high quality SKF bearings made in Switzerland, which ensure high efficient and steady driving with low noise.
3. The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, corn, wheat, and rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.

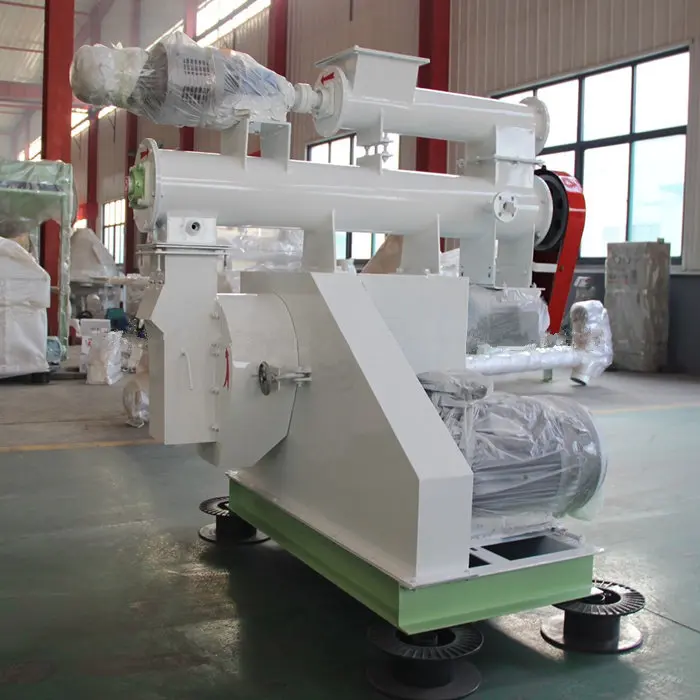

1-10T/H ring die pellet mill
4. Full Stainless steel strengthening feed conditioner, adopts the frequency-conversion speed regulating control to guarantee quality wood pellet.
5. The alloy steel die is made by international advanced German gun drill and American vacuum furnace, has long service life and ensure smoothly pelletizing and high quality.
6. The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
7. Permanent magnet device can remove impurities in the pelletizing process.

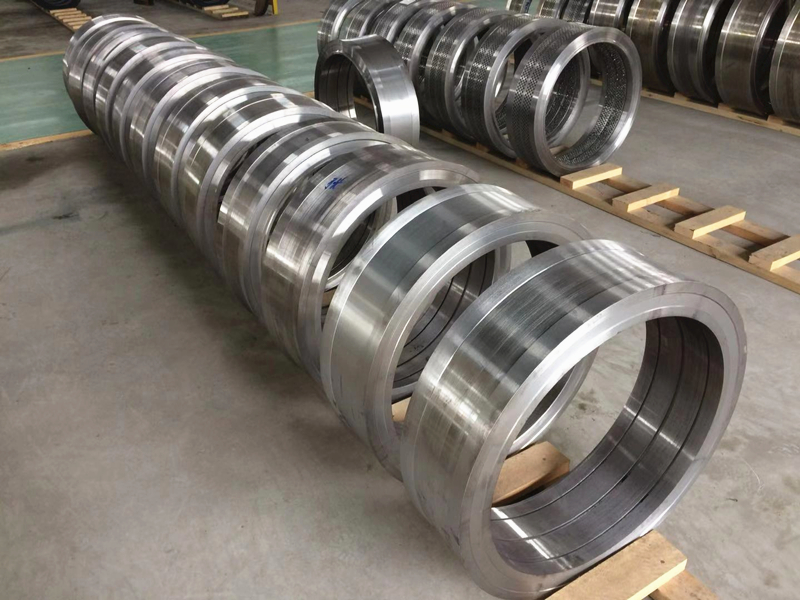

Ring Die Pellet Mill Spare Parts( rollers, dies, roller shells)

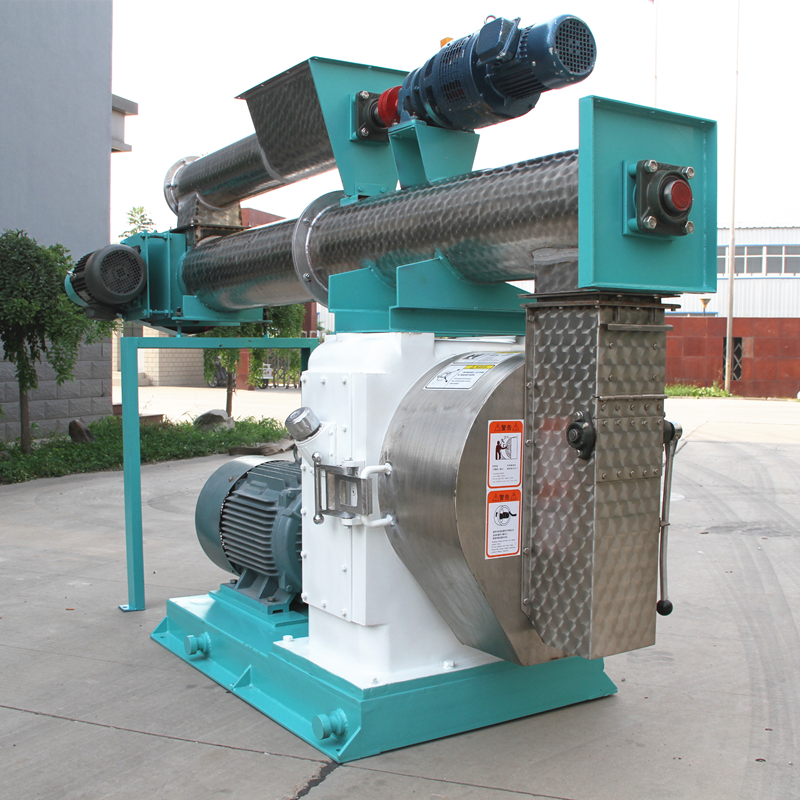

1-10T/H ring die pellet mill

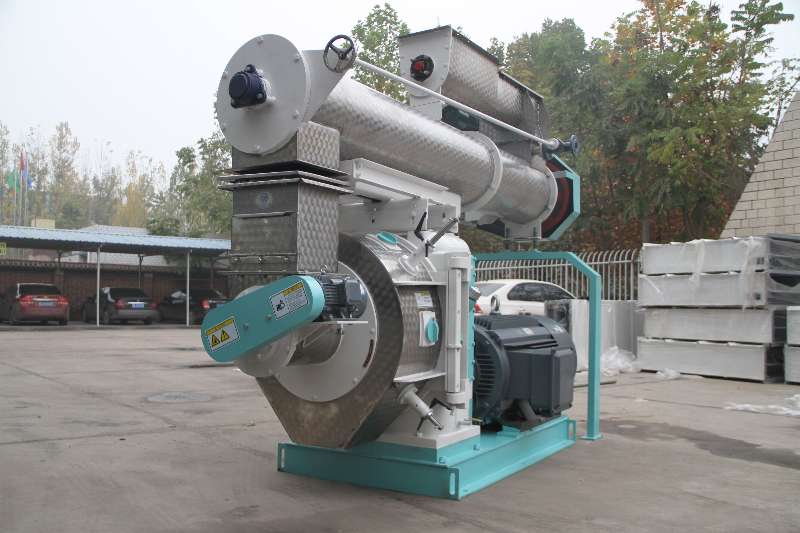

1-10T/H ring die pellet mill

What Materials can be Pelletized by Ring Die Wood Pellet Machine?
Nearly all forestry and agro-waste material can be made into wood pellets by our ring die wood pellet machine, such as: Wood Chips, Shaving, Sawdust, Groundnut-shell, Sugarcane Biogases, Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used for industrial boilers and large power plants as well as home heating.

1-10T/H ring die pellet mill

Specification of Ring Die Pellet Mill

Model

Output

Power

Feeding power

Conditioner

power

die inner diameter

Pellet

Diameter

HMK-250

0.5–1 t/h

22kw

0.55 kw

2.2 kw

250 mm

1.5–8mm

HMK-300

1–2t/h

37kw

0.75kw

2.2kw

300

1.5–8mm

HMK-320

2–3 t/h

37 kw

0.75 kw

2.2 kw

320 mm

1.5–8mm

HMK-350

3–4 t/h

55 kw

0.75 kw

2.2 kw

350 mm

1.5–8mm

HMK-400

4–5 t/h

75 kw

1.5 kw

2.2 kw

400 mm

1.5–8mm

HMK-420

5–7 t/h

90 kw

1.5 kw

5.5 kw

420 mm

1.5–8mm
