  • Model:9FH1500

    Power:11kw+4kw

    Power type:electricity

    Capacity:1250~1500kg/h

    Final product size:fine powder

    Used for:making poultry feed, fish feed,cat food,dog food,pet food

    Raw materials:grains,manure,rice husk,grass meal,sunflower,etc

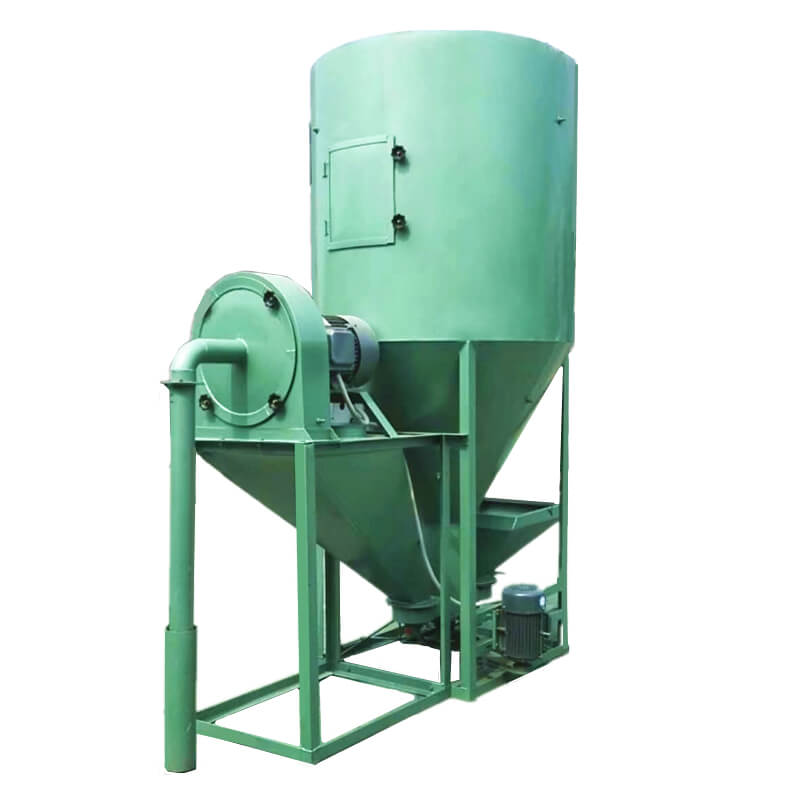

livestock feed grinder mixer is specially designed for rural areas household, small feed mill, it combines vertical lifting, mixer and horizontal conveying materials into one,used to first crushing the grains then mixing the powders for animal feed. Animal Feed Grinder and Mixer suitable for feed processing households, small and medium-sized farms and various forms of feed manufacturers. The poultry feed grinders have advanced design, reasonable structure, reliable performance, convenient maintenance, work in crushing, mixing, wind and other functions in one. The content of uniform feed ingredients and configuration. High production efficiency, small occupation area, labor saving, less dust, good sealing performance.

1-1.5T/H vertical feed grinder mixer

Working principle for animal Feed Grinder and Mixer

There are one crushing mechanism of automatic suction and forced feeding two (according to the model selection for mill), when the material is sucked or into the crushing chamber, the hammer blow and continuous collision, rapidly crushing into powder or granular, and then subjected to centrifugal force or air, through the sieve into the A impeller chamber.

Two mixing mechanism: when the material propeller rotates, the material is composed of B impeller chamber were forcibly sent to the feeding pipe, and then be promoted to the top propeller stirring barrel, then the material is uniform and throw in the stirring barrel, up mixing barrel material decreased and rotation around the continuous form, so as to achieve the mixing process. Mixing effect.

1-1.5T/H vertical feed grinder mixer

Features and advantages of livestock feed grinder mixer

1.This livestock feed grinder mixer is mainly used for crushing and mixing all kinds of dry animal feed and consists of a feeding machine, grinder, mixer consists.

2.livestock feed grinder mixer is most suitable for small farmers using, and it can mix and crush feed for pigs,cows,horses, rabbit, chicken,fish, dove and so on.

3.livestock feed grinder mixer can be used to crush all kinds of cereal, grain, like corn,wheat,bean,and others to powder that can make animal feed or for other process,
this vertical livestock feed grinder mixer has the crush and mix function at the same time,very convenient and easy to operate.

4.Screw convey,crusher and mixer are combined in one machine, so it occupys a small place and easy to install,maintain and carry.

5.Tiny-grained materials,low noise, low energy consumption,so that this machine is small and medium-sized farms processing production material of choice inexpensive products!

1-1.5T/H vertical feed grinder mixer

Poultry feed grinders specification

Type

Capacity

(T/H)

Power

(kw)

Size

(M)

Weight

(KG)

9FH-500

0.5~0.75

7.5kw+3

2.3×1.05×2.5

230

9FH-750

0.75~1.0

11kw+3

2.35×1.16×2.6

260

9FH-1000

1.0~1.25

11kw+3

2.4×1.3×2.9

320

9FH-1500

1.25~1.5

11kw+4

2.65×1.45×3.0

380

9FH-2000

1.5~2.0

15kw+4

2.8×1.75×3.1

430
