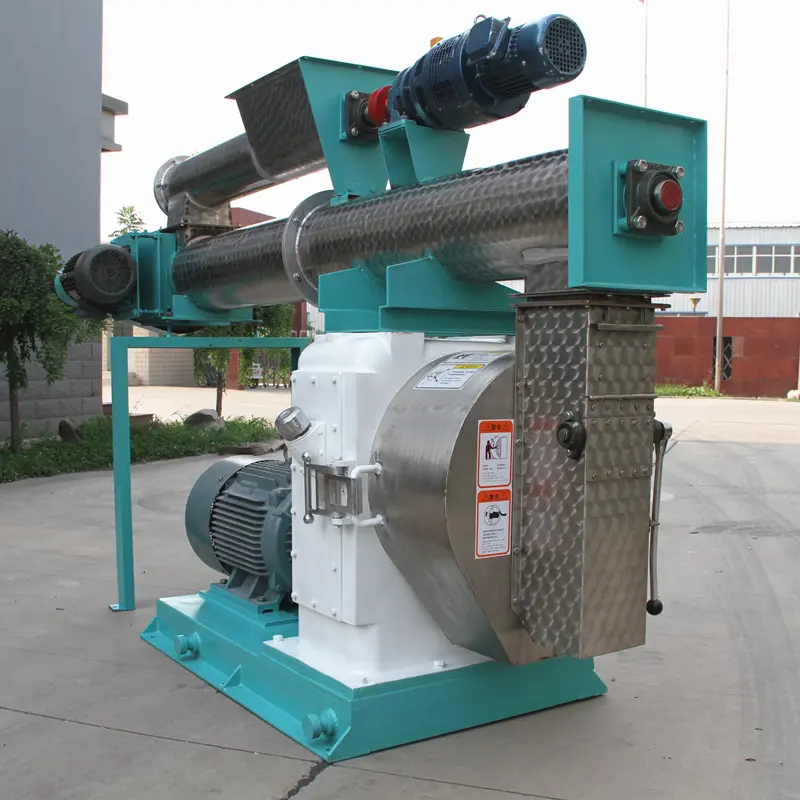

large feed pellet mill for industrial and commercial feed production plant

Model:VHMK508

Power:132kw,three phase

Power type:Electricity

Capacity:10~15tons/h

Final pellet size:2~15mm

Used for:Cattle, pig, goat,cow, sheep, rabbit, chicken, duck, fish, etc

Raw materials:Corn,maize,wheat,beans cake,bone meal,fish oil etc

Description

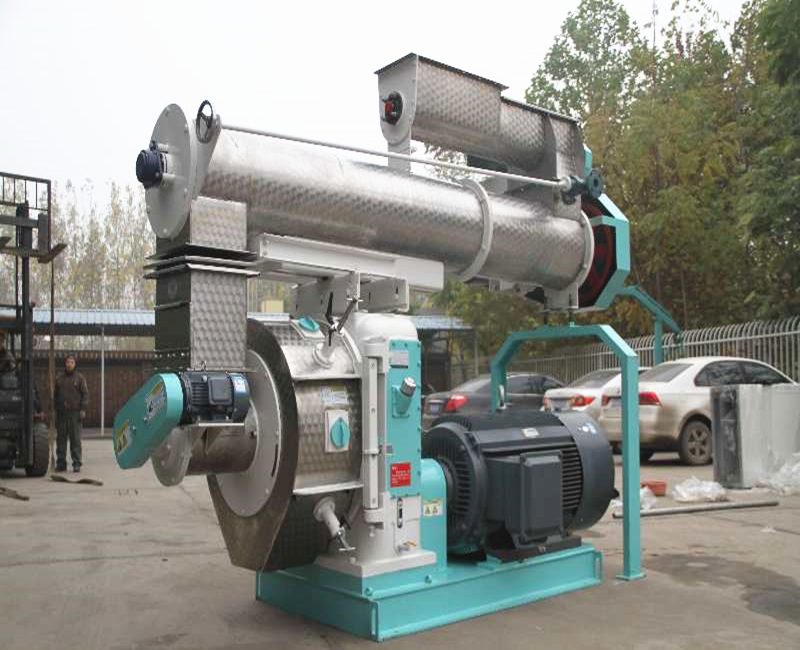

Large feed pellet mill is used for pelletizing corn ,wheat,maize,flower sapling, sweet potato wine, clover grass, rape straw, etc. into the fodders for cattle, pig, goat,cow, sheep, rabbit, chicken, duck, fish, etc. Industrial feed pellet mill is the preferred equipment for making fodder in the large-middle feed production plant and every livestock farm. This ring die feed mill machine can pelletize various kinds of materials for livestock feed, aquatic feed, pet food, grass powder and organic fertilizer material.The machine equipped with grinding apparatus in diversified apertures whose diameters are from 1.5mm to 20mm, feed pellet mill are suitable for different materials to achieve wonderful outcomes.

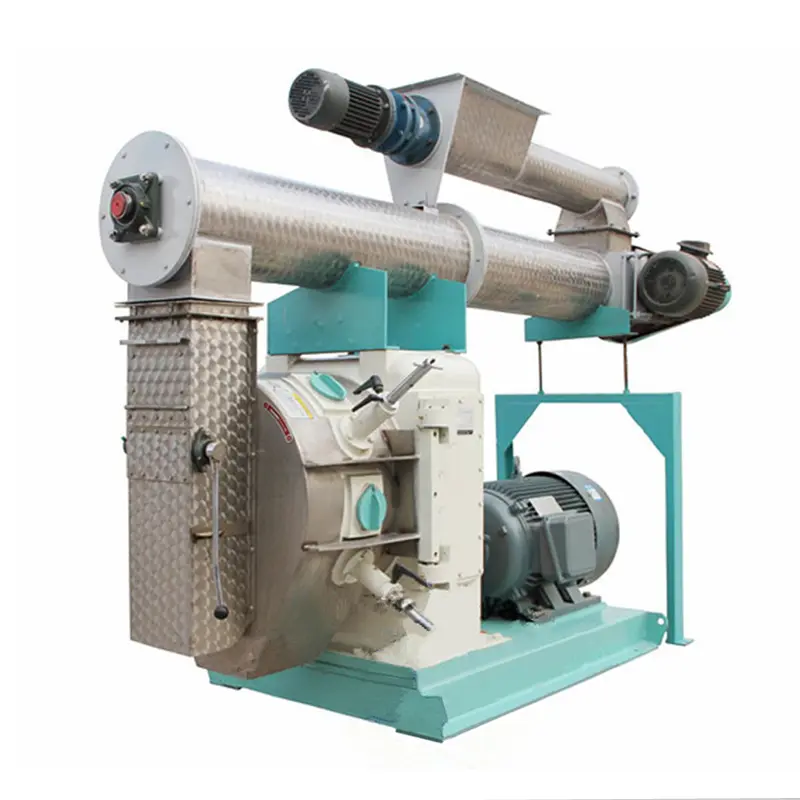

5-10 T/H ring die pellet mill

why do we make feed pellet ?

1.Be easy to reserve. Pelleting mash feed and grass meal needs a little or no liquid. Therefore, the moisture content of pelleted feed is quite equal to that in earlier time.

2.Grab economic profit. It’s more affordable than fodder feed.

3.Well digest. With feed’s high solidity radio, smooth surface and internal cured , nutrition is well digest and absorb by cattle.

4.Prevent disease and parasites. Denaturation affects the trypsin resistance factors in beans and frumentum in pelleting process, which relieves indigestion and exterminates parasitic worm eggs and pathogenic microorganism to lower digestive diseases.

5.The feed pellet mill accepts mixed materials to distribute nutrition for cattle with reasonability and to avoid picky eaters.Rigidity of the pellets prolongs cattle’s chew-time to improve their digestive system-circumstance.

6.Because of materials heating in the process, the pellets’ luster turns out better.The heating puts lightly grass fragrance in pellets, while other feed processes don’t.

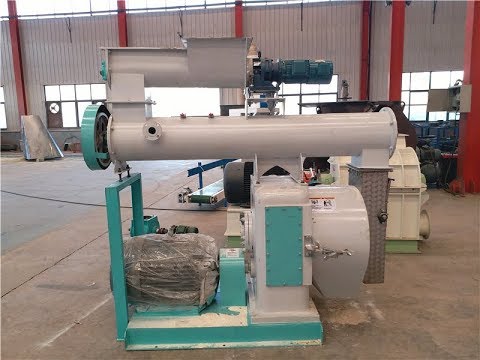

5-10 T/H ring die pellet mill

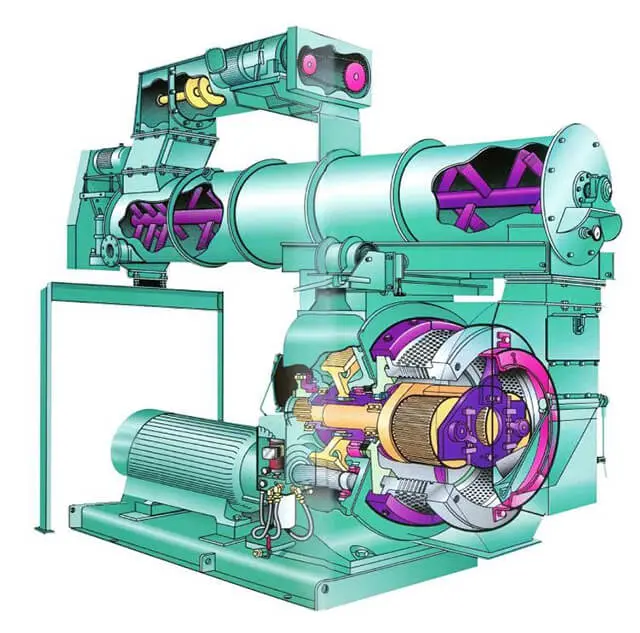

Structure of large feed pellet mill

Large feed pellet mill is mainly consist of feeding device (screw feeder), conditioner,press chamber transmission system, overload protection and electrical control system. The feeding of ring die type feed mill is forced into the pelleting chamber and distributed by the high speed rotary scrapers. It is featured with movable, reasonable price and high output. The output capability ranges from 10~15t/h

5-10 T/H ring die pellet mill

The operation precaution of large feed pellet mill

1.Wearing right cloth is necessary before the first experience to insure good status.

2.Forbid putting your arms into the machine with powered on. If necessary, use a stick to help loading.

3.Add some powdery material before starting a machine. And leave some of it after a machine being shut down. In case that the compression roller rub against the template and spin in vain .

4.If the machine is stuck, the emergency plan is that shut it down and press the compression then try turning it on again.

5.Ensure that the compression roller is adjusted every time till the bolt turns loose after working.

6.Check the tightness of the belt frequently, in case of slippery belt and low production.

5-10 T/H ring die pellet mill

Technical parameters of large feed pellet mill

Model

VHMK250VHMK300VHMK320VHMK350VHMK420

VHMK508

Capacity

(t/h)

1~1.51.5~2.52~43~66~10

10~15

Main Power

(kw)

22303755110132
Feeding Power

(kw)

0.750.750.750.751.5

1.5

Conditioner Power

(kw)

2.22.22.22.25.5

5.5

Ring Dia

(mm)

250300320350420

508

Pellet size

(mm)

Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ4.5,Φ5,Φ6,Φ8 etc

Application

Chicken ,duck,rabbit ,goose,cattle ,sheep etc

Working video of large feed pellet mill
