cost of fish feed extruder machine China supplier fish feed extrusion machine

    1 Star2 Stars3 Stars4 Stars5 Stars (11 votes, average: 4.64 out of 5)
    Loading...
  • Model:DSP120
    Power:55KW+1.1KW+2.2KW three phases
    Power type:electricity
    Capacity:700~800kg/h
    Final pellets size:0.9-15mm
    Used for:making fish feed,cat food,dog food,pet food
    Final pellets shape:ball shape,bone shape,heart shape,footprint shape
    Raw materials:grains,manure,straw meal,alfalfa,rice husk,grass meal,sunflower,etc
    Raw materials moisture required:15-25%

Fish feed extrusion machine are the machinery used to produce extruded petfood, (floating) extruded aquatic feeds and extruded animal feeds.
The extrusion cooking process, because it causes a high level of gelatinisation of starches, results in feeds with good water stability. this fish feed extruer machine can produce ‘expanded’ floating feeds as well as sinking pellets. The process also improves the digestibility of the product. However, extrusion cookers are usually very large and expensive to purchase and operate.

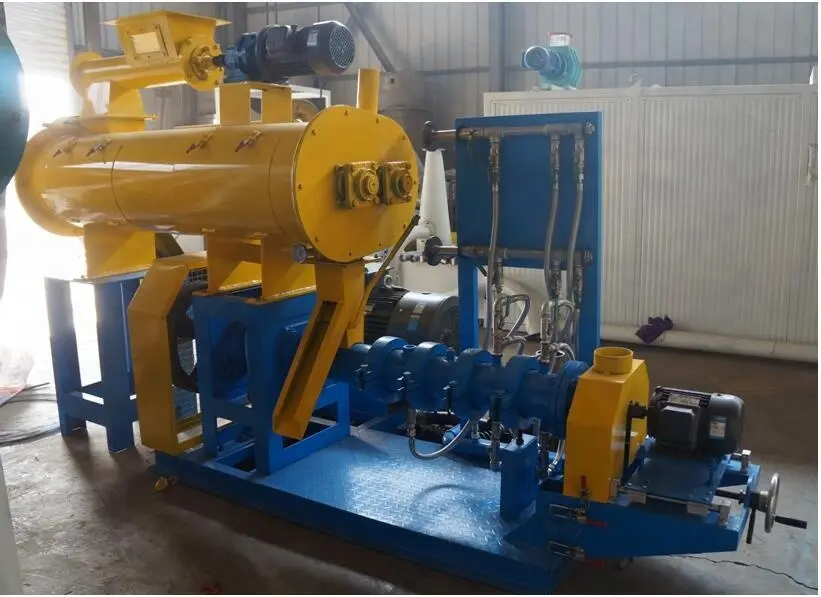

700-800KG/H fish feed extruder

Feeds which have ingredients such as soybean meal and cereal grains can be made more digestable, and the nutrients are therefore more available. Floating feeds are made using extruders along with highly water-stable sinking feeds which can be made with extruders as well. In some cases, extruders are used just to prepare feed materials, such as dry extrusion of soybeans.

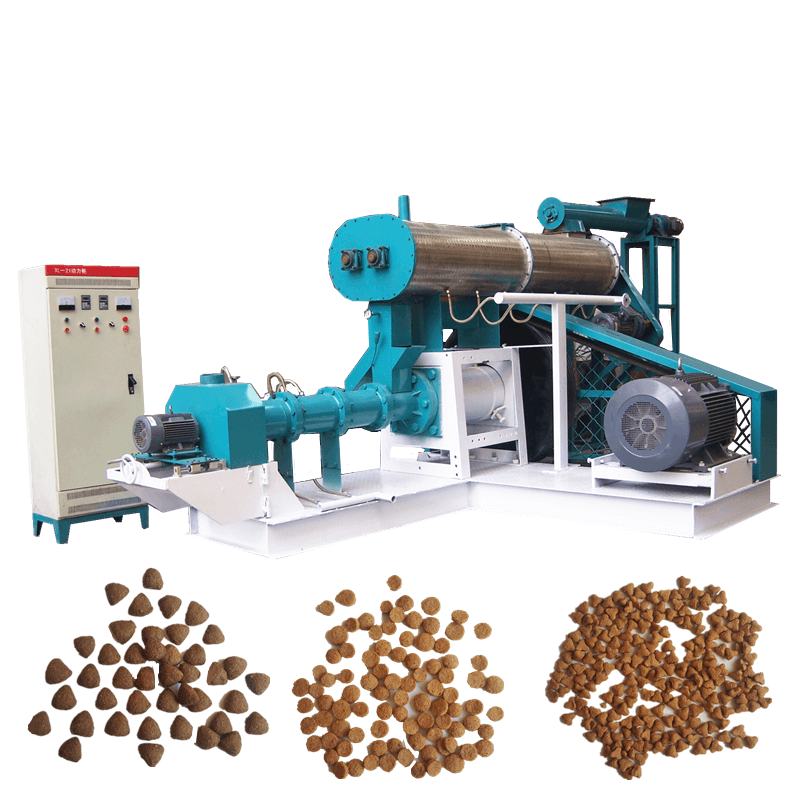

700-800KG/H fish feed extruder

Basically, floating fish feed extrusion machine is a long barrel with a screw auger inside which is specially designed to subject feed mixtures to high heat and steam pressure. When feed exits the die at the end of the barrel, trapped steam blows off rapidly, the soft warm pellets expand, and a low density floating pellet is produced fish feed extrusion machine are very versatile, and can make feeds with many different characteristics. The main problem is that they are expensive to buy and maintain, and the feed manufacturers pass this cost on to feed buyers.

700-800KG/H fish feed extruder700-800KG/H fish feed extruder

Floating Fish Feed Extruder Features:

1. Easy operation and installation
2. Low power consumption
3. Auto-temperature controlling
4. Continuous work and durability
5. Available to floating and sinking fish feed.
6. Competitive price

Application and Suggestion of Fish Feed Extrusion Machine


1.Puffing particle: Depending on the different requirements to produce a variety of feed shapes for high-grade fish, Shrimps, aquatic.
2.Crabs puffing granules: The granule is solid and round, and the diameter of the crabs puffing granules can be adjusted according to your need.

3.Production: For floating or sinking water plant pellets, we can provide our customers the special usable aquatic feed formulations.
4.A reasonable hardness of feed will keep the feed stability and good for prevention of water pollution.
5.It can sterilize the feed, make the pellet food nutrient-rich, easy to be absorbed.
6.Attractive results are obvious.

700-800KG/H fish feed extruder700-800KG/H fish feed extruder

Technical Data of Floating Fish Feed Extrusion Machine

Model
Capacity
Main
power
Feeding
 power
Screw
diameter
Cutting
 power
Conditioning
power
DSP60
0.15-0.20t/h
15kw
0.4kw
60mm
0.4kw
0.37kw
DSP70
0.30-0.4t/h
18.5kw
0.75kw
70mm
0.4kw
1.1-1.5kw
DSP80
0.40-0.5t/h
22kw
0.75kw
80mm
1.5kw
1.5-2.2kw
DSP90
0.50-0.6t/h
37kw
1.1kw
90mm
2.2kw
2.2-3.0kw
DSP120
0.7-0.8t/h
55kw
1.1kw
120mm
2.2kw
2.2-3.0kw
DSP135
1.0-1.2t/h
75kw
1.5kw
135mm
3.0kw
3.0-4.0kw
DSP160
1.8-2.0t/h
90kw
2.2kw
155mm
3.0kw
4.0kw
DSP200
3.0-5.0t/h
132kw
2.2kw
195mm
4.0kw
5.5kw

















Video of fish feed extruder machine
