feed crusher for sale,animal feed crusher machine for fish,cattle,sheep
Model:VTSP56*36
Power:22KW three phases
Power type:Electricity
Capacity:3000-4000kg/h
Rotor Diameter:560 mm
Width of Grinding Chamber:360 mm
Hammer quantity:20pieces
Final product:fine powder
Used for:making chicken feed,cattle feed,,fish feed,pet food
feed crusher machine is a special equipment to break large materials into fine powder. The materials crushed by hammer blades with common teeth are usually of 0.6-1.5mm; and crushed with fine teeth are of 1-2.5mm.feed crushing machine is a machine specialized in crushing materials by the collision between the high-speed hammer and materials,animal feed crusher is a machine specialized in crushing materials by the collision between the high-speed hammer and materials. Raw materials in feed crusher are crushed into suitable particle sizes for feed mixer procession. Final size of materials can be controlled by inserting a screen with different sized holes. With competitive price, simple structure and high efficiency, animal feed crusher machine is mainly employed in the farm, middle sized feeding factory or for family use.
feed crusher machine featured advantages
● Easy to operate, low specific power consumption, accurate and consistent product grinding
● Reasonable design: final size of materials can be adjusted according to replacing the right screen sieve. Moreover the ability to change screen size, and the option of a variable speed frequency drive control, enable the crusher to processing a variety of materials.
● Core part-hammers are made of high quality carbon alloy steel, which is durable and wear-resistant. Long life and durability.
Animal Feed Crusher Application
The animal feed crusher is widely employed in farm, middle-sized feeding factory or for family use. This feed grinder can be used for many different particle reduction:
♦ Agricultural materials, such as corn, maize, corn stalk, peanut shell, dry grass, cotton stalk, etc.;
♦ Pharmaceutical and industrial materials, such as Chinese medicine crops, quartz, coal, coal residue, woods, etc
Raw materials for feed crusher are crushed into suitable particle sizes for feed mixer procession. Final size of materials can be controlled by inserting a screen with different sized holes. With competitive price, simple structure and high efficiency, animal feed crushing machine is mainly employed in the farm, middle sized feeding factory or for family use.
Feed crusher machine specification
| Model | VTSP56*30 | VTSP56*36 | VTSP56*40 | VTSP60*45 |
VTSP960*75 |
|
Capacity (t/h) |
1~2 | 3~4 | 5~6 | 6~9 |
10~13 |
|
Power (kw) |
11 | 22 | 37 | 45 |
75 |
|
Rotor Diameter (mm) |
560 | 560 | 560 | 600 |
600 |
|
Width of Grinding Chamber (mm) |
300 | 360 | 400 | 450 |
450 |
|
Rotate Speed (r/min) |
2950 | 2940 | 2950 | 2980 |
2980 |
|
Hammer Quantity |
16 | 20 | 24 | 36/64 |
60/120 |
|
Size (m) |
1.4*0.86*1 | 1.43*0.86*1 | 1.63*0.86*1 | 1.98*0.84*1.2 |
2.08*0.84*1.2 |

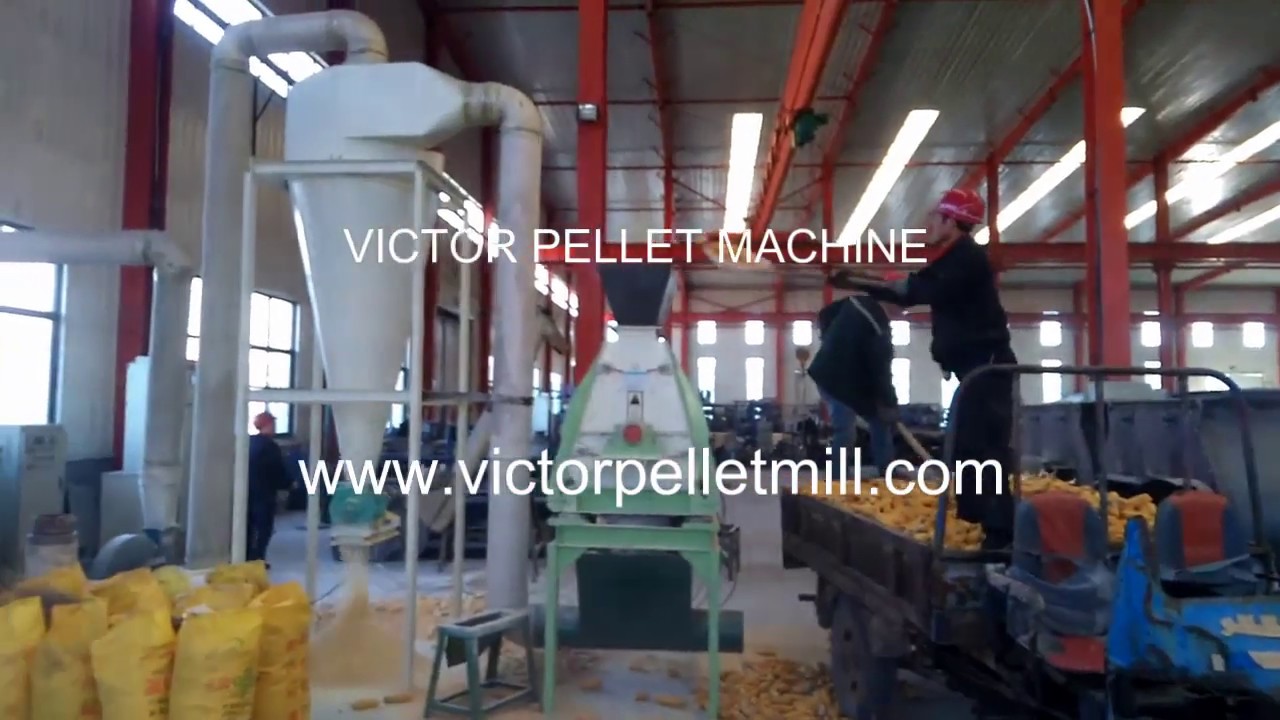

Video of feed crusher machine
