electric corn grinder machine for poultry feed,chicken feed,cattle feed

    1 Star2 Stars3 Stars4 Stars5 Stars (5 votes, average: 4.40 out of 5)
    Loading...
  • Model:9FQ600

    Power:22kw

    Power type:electricity

    Capacity:1000~1500kg/h

    Final product size:fine powder

    Used for:making fish feed,cat food,dog food,pet food

    Raw materials:grains,manure,straw meal,alfalfa,rice husk,grass meal,sunflower,etc

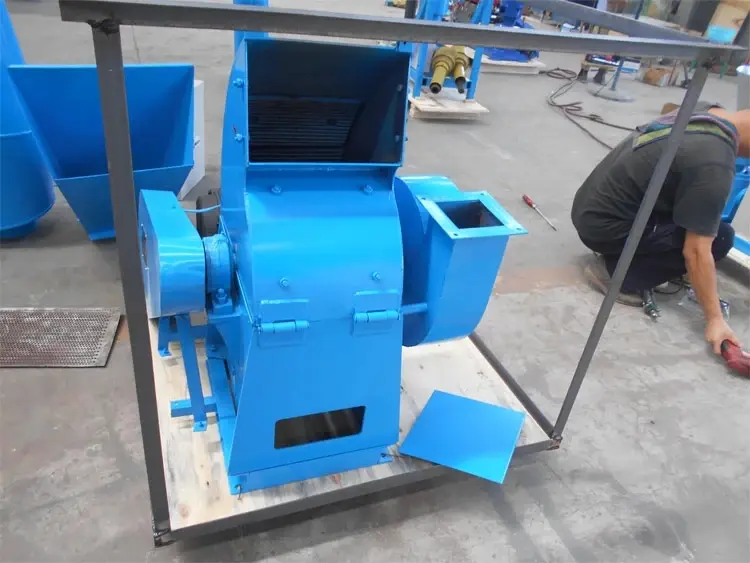

electric corn grinder is a hammer mill type grinding machine used for processing poultry feed raw materials into small pieces with proper sizes to help further process. And we are the expert in designing and manufacturing several feed grain grinder machines for your choice.This corn grinding machine is made up of feed hopper, top engine block, bottom engine block, rotor, sieve, working fan, feed delivery pipe, etc. And the storage bag and storage bin can be equipped as customers required. Besides, we also provides other two similar machines to grind feed ingredients

0.5-1.5T/H feed grinder machine0.5-1.5T/H feed grinder machine

Features of Electric Corn Grinder

1.this poultry feed grinder has wide application. Various kinds of raw materials can be crushed, such as wheat, maize, rice, soybean, groundnut, millet or other solid materials such as bone, dry meat and so on.
2. this electric corn grinder adopted simple structure and advanced design.

0.5-1.5T/H feed grinder machine
3. this corn grinder machine has high efficiency, easy to operate, stable performance.
4. Electric feed hammer mill can be used in fish feed pellet plant, animal and poultry feed pellet plant, fiberboard, high density board, paper production industry, etc.
5. Our electric feed material grinding machine is composed of feeding hopper, rotor, sieves, draught fan, crushing chamber and delivery device.

Working Principle of Electric Corn Grinder

Raw materials enter into crushing chamber through feeding hopper and then be crushed by high speed rotating hammer blades. Raw materials quickly be crushed into small pieces under continuous strike, collide and smash with hammer blades, toothed plate and screen pieces. Then crushed materials would be sent to pass through screen holes. Large particles that can not pass through screen holes need to be re-crushed.

0.5-1.5T/H feed grinder machine

Electric Feed Grinder Maintenance and Troubleshooting

☑ Operate the corn grinder machine strictly following the operating instructions. Checking and cleaning the machine each shift.
☑ Clean up both the inside and outside of the machine during a long downtime, to avoid the grinder getting rusty or the sieve mesh being blocked.

0.5-1.5T/H feed grinder machine
☑ Overhaul and replace the spare parts timely if they are broken or wore severely.
☑ Check the tightness of triangle belt every time it starts. The aging of the belt will affect the performance of the hammer mill.
☑ It is a normal phenomenon that the bearings heat (not higher than 25℃ ) after this corn grinders machine works for a period of time. If heat up to 60 degrees, it is proved that the bearing has been aging, then consumers should stop to replace the bearing or clean it.

Specification of electric corn grinder machine

model

power

weight

(kg)

Size

(mm)

Capacity

(kg/h)

9FQ-320

3kw

50

350*550*850

100–300

9FQ-360

5.5kw

110

650*600*1050

300–500

9FQ-400

7.5kw

160

700*650*1050

500–700

9FQ-420

11kw

180

780*700*1100

600–800

9FQ-500

 15kw

210

900*850*1250

800-1000

9FQ-600

 22kw

510

1350*950*1550

1000–1500

Video of corn grinder machine
